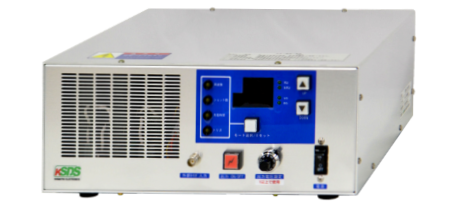

Features
- Charger suitable for pulsed power generator
- Charging voltage, Charging time and Trigger signal length adjustable
- High repetition charging up to 20kHz
- External Trigger Operation
- Various protection functions
- Custom-made chargers are available.

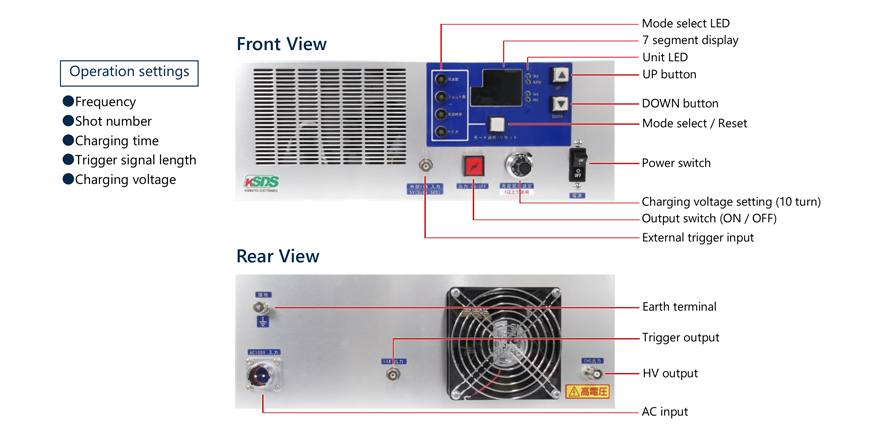

Function

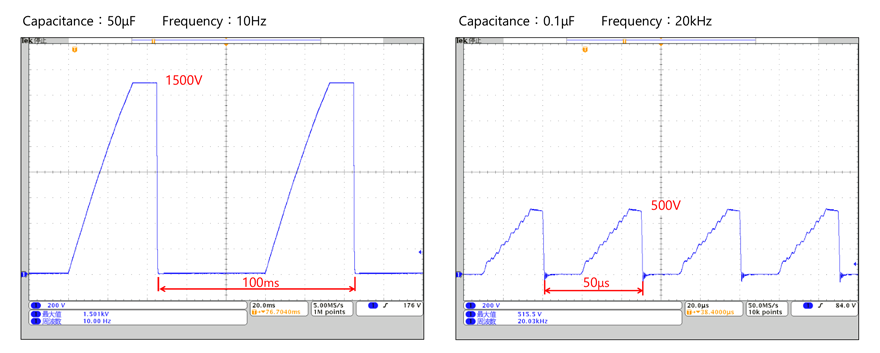

Charging Waveforms

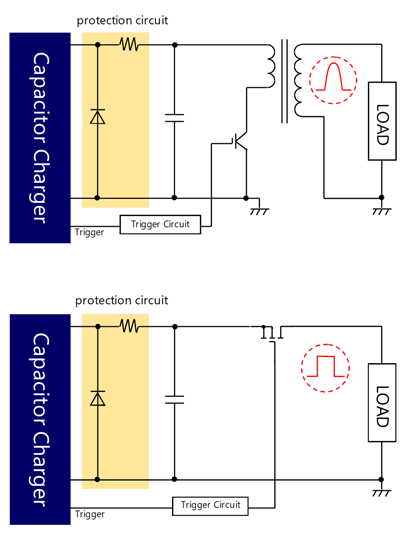

Examples of circuit
Specifications
| Product Name | Capacitor Charger |
|---|---|
| Model Number | 152W-1.5KV-20K-P |
| Input Voltage | AC100-130V or AC200-240V 50/60Hz |
| Maximum Charging Voltage | 1500V |
| Capacitance Range | >0.1μF |
| Charging Repetition | 1Hz-20kHz |
| Shot number setting | Continuous, 1-9999 shots |
| Charging Time Setting Range | 10μs-1s |
| Trigger Signal Output | BNC 5V Square wave<, 10μs-1ms |
| External Trigger Input | BNC 5V Square wave |
| Protection | Open/Short circuits |
| Over temperature | |
| External trigger fault | |
| Over input current | |
| Dimension | W340×H142×D382mm |
| Weight | 5.4kg |
| Accessories | Power cable (1.5m) |
| Output HV-BNC cable (1.5m) | |
| Trigger BNC cable (1.5m) |
