MPC series | High Voltage, High Power, High Repetition Rate
Features
- Fast Rise Time <50ns
- High Voltage Output up to 30kV
- Rep. rate up to 15000pps
- Short Pulse Width Option

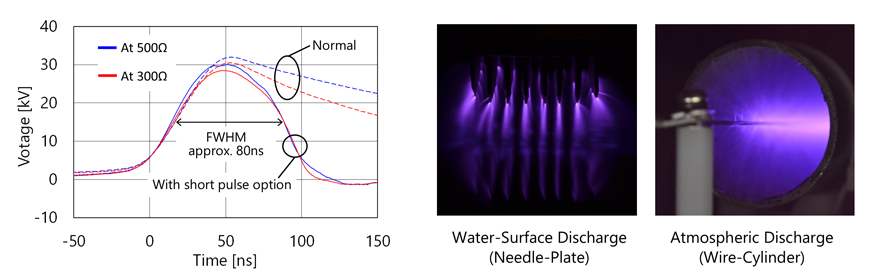

Waveform (MPC3010S with short pulse option)
Specifications
| Product Name | Pulsed Power Generator | ||||
|---|---|---|---|---|---|
| Model Number | MPC1110S-15KLP | MPC1310S-2KLP | MPC3010S-25LP | MPC3010S-5J | |
| Maximum Output Voltage (at 500Ω) | 11kV | 13kV | 30kV | 30kV | |
| Rise Time | Approx. 50ns | Approx. 100ns | Approx. 50ns | Approx. 300ns | |
| Pulse Repetition Rate (max) | 15000pps | 2000pps | 250pps | 120pps | |
| Input energy (max) | 20mJ/pulse | 0.1J/pulse | 0.8J/pulse | 5.2J/pulse | |
| Input Voltage | AC100-130V or AC200-240V 50/60Hz | ||||
| Input Power | 600VA | 750VA | 500VA | 1500VA | |
| Cooling System | Forced air cooling | ||||
| External Trigger Input | BNC (5V) Square wave | ||||
| Protection | Over temperature, Control voltage reduction, Fan speed reduction, Charging error, External trigger fault | ||||
| Dimension *including protrusions |
Capacitor Charging Unit | W355×H165×D350mm | W340×H142×D344mm | W340×H142×D344mm | W340×H142×D344mm |
| Pulsed Power Unit | W406×H155×D326mm | W314×H126×D250mm | W428×H155×D333mm | W514×H214×D603mm | |
| Weight | Capacitor Charging Unit | 5.5kg | 4.0kg | 4.5kg | 5.0kg |
| Pulsed Power Unit | 6.1kg | 4.5kg | 7.2kg | 25.6kg | |
| Accessories | Power cable (1.5m), Cable for connecting between two units (1.5m), Output cable (0.5m) | ||||
| Notice | *2 | *1 *2 | |||
*1 Can be custom-made up to 500pps
*2 Can be custom-made to short pulse width

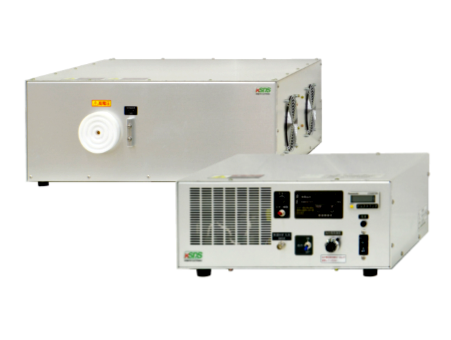

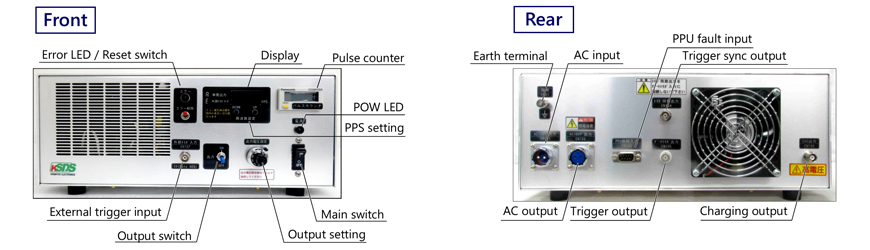

▼Capacitor Charging Unit

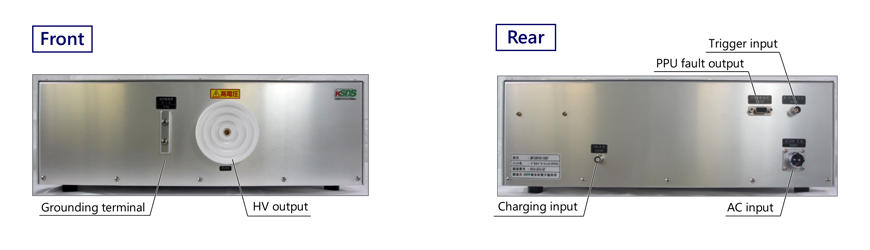

▼Pulsed Power Unit
